| 원래 장소 | 중국 |
| 브랜드 이름 | Giant Fence |
| 인증 | ISO9001:2001 |
| 모델 번호 | GF090 |

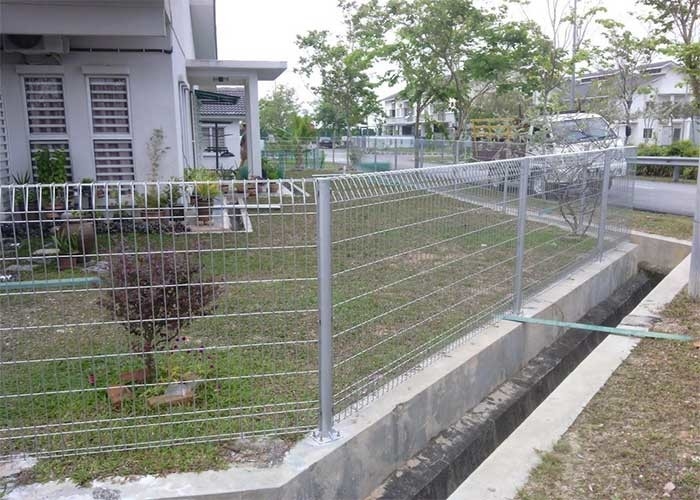

BRC Fence Triangle Bending Pvc Coated Welded Wire Garden Fence
Welded Wire Garden Fence Introduction
BRC Welded Fence is beautiful, elegance and currently the most popular welded fencing system.
It is corrosion resistance due to the entire weld fence panels, posts, brackets and clips are all fully galvanized items. Recently, BRC Welded Fence has been widely used in public and private properties areas which includes: car parks, park’s fence, schools, playground, pedestrian zone, factory, residence and bungalow properties.
Rolled top and bottom edge meaning no sharp or raw edges. It’s an open mesh system that allows excellent visibility making it widely popular among communities.
Welded Wire Garden Fence Specifications
| Wire Dia. | Mesh Size | Length | Height | Round Post Size | Common Color |
|
4.0mm
5.0mm
6.0mm |
50*100mm 50*150mm 50*200mm 75*200mm 100*200mm 100*300mm |
2000mm
2200mm
2500mm
3000mm |
1030mm |
48*1.5/2.0mm
60*1.5/2.0mm |
Green RAL6005 |
| 1230mm | Black RAL9005 | ||||
| 1530mm | White RAL9010 | ||||
| 1830mm | Grey RAL7030 | ||||
| 2030mm | Red RAL3020 | ||||
| 2230mm | Yellow RAL1023 | ||||
| 2430mm | Blue RAL5017 |
1 > iron wire (no zinc)
2 > electro galvanized wire (zinc thickness: 10-20g/m2)
3 > hot dipped galvanized wire (zinc thickness: 30-40g/m2)
4 > heavy hot dipped galvanized wire (zinc thickness: 200g/m2)
5 > Powder spray coated (thickness 0.1mm)
6 > PVC/PE dipped coating (thickness 0.8-1.2mm)
Proction Line:
Material---Cut short machine---Sandblasting machine---Galvanized bath---Parkerizing tank---powder coated machine
Acquiring Raw Material ---Cleaning with Mineral Turpentine Oil ----Cleaning with 3 IN 1 Chemical-Rusted---Cleaned Material Carried into the Coating Booth ---Coating the Material with the Desired & Given Colours----Baking the Coated Material Up to 180 degree to 200 degree & curing it for 15-20min----Inspection of Material (Tests)----Final Inspection
BRC Fence has attractive appearance, various colors, it not only has the fencing function but also has the beautify and safety effect
1 > With the characteristics of high strength, good rigidity, beautiful appearance, a broad field of vision, easy installation, bright feeling, light and practical.
2 > It is very compact connecting the mesh with the posts is very compact, whole feels good.
3 > Fluctuate of circle so that the net surface strength increased significantly.
