| 원래 장소 | 허베이, 중국 |
| 브랜드 이름 | Giant Fence |
| 인증 | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
| 모델 번호 | GF095 |

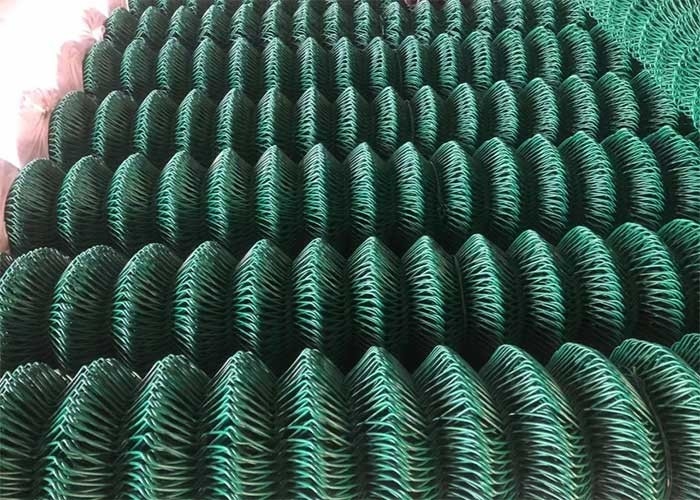

River Bank Protection Galvanized Chain Link Fence
Galvanized Chain Link Fence Description
Galvanized Chain Link Fence is a kind of elastic woven net, which is made by crocheting wire of various materials by crochet machine. It can be divided into two types, namely, folding and shrinking handle and twisting side lock handle, which are also called rhombic mesh and flexible mesh. The commonly used hook net includes plastic covered Crochet net, galvanized Crochet net, plastic coated Crochet net, etc.
Texture of material
High quality low carbon steel wire, galvanized wire, iron wire, stainless steel wire
Characteristic
1. The mesh is even, the mesh surface is flat, beautiful and generous;
2. It has strong adaptability and can be connected with the column and fluctuates with the ground;
3. Convenient transportation and installation;
4. Good overall stability, corrosion resistance, sunlight resistance, strong protection ability;
5. The cost is moderate, the overall cost-effectiveness is high, has been widely used in each session.
Application:
Widely used in highway, railway, highway and other fence facilities. It is also used for interior decoration, raising chicken, duck, goose, rabbit and zoo fence. Protection net of mechanical equipment and conveying network of mechanical equipment. Stadium fence, road green belt protection net.. It is also used to protect and support seawalls, hillsides, roads and bridges, reservoirs and other civil works. It is a good material for flood control and flood resistance. It can also be used for handicraft manufacturing. Warehouse, tool room refrigeration, protective reinforcement, marine fishing fence, construction site fence, river channel, slope fixed soil (rock), residential safety protection.
Galvanized Chain Link Fence Specification
| Material | PVC coated wire | ||||
| Mesh Size | 40*40mm | 50*50mm | 60*60mm | 75*75mm | 100*100mm |
| Wire Dia | 2.0-4.8mm | ||||
| Height | 1.2m, 1.5m, 1.8m, 2.0m, 2.1m, 2.4m, 2.5m, 3m, 3.6m, 4m | ||||
| Roll Length | 10m, 15m, 18m, 20m, 25m, 30m, or as require | ||||
| Post | Round post, Angle iron post | ||||
Chain Link Fence process
The accessories of Chain Link Fence
Flat iron : support
Brace band :link tensioner & post
Tension band : Link the flat iron & post
Tensioner : secure the line wire chain link fence
Line wire : Folding the chain link mesh
