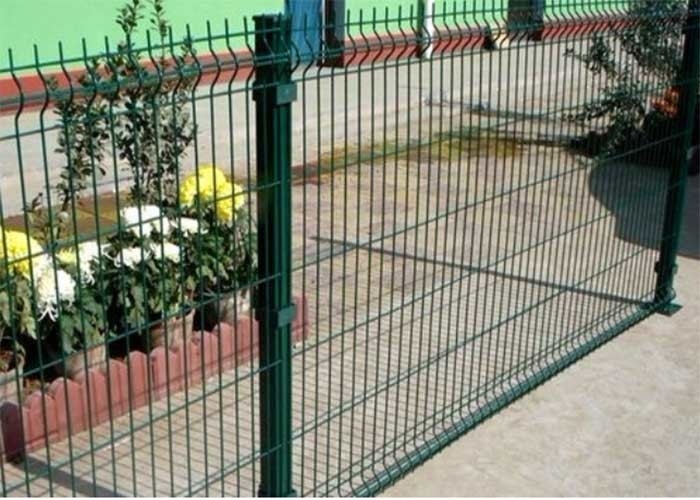

Square Post With Welded 3D Security Powder Coating Curved Fence
3D Fence with Sqaure post Description
3D Fence with Sqaure post is fixed all the panel with post by plastic or steel clamps. Due to its versatile appearance it can be used for a number of different premises, surrounding large areas without restricting the view., it has simple structure ,easy installation and nice appearance
the panel with curves more stable and stronger. It is one of the easiest ways to ensure that your property is kept secure.
3D Fence with Sqaure post Specification
|
Line wire x Cross wire |
Hole Size | Panel Length | Panel Height | Bending No. | Common Color | Surface treatment |
|
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm 6x5mm 6x6mm |
50X100mm 50X200mm 55X200mm 75X150mm 100X300mm
|
2m 2.2m 2.4m 2.5m 2.8m 3m |
830mm | 2 |
Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010 |
1.Hot-dipped galvanized after black wire welded 2.PVC coated after galvanized wire welded 3.PE coated after galvanized wire welded |
3D Fence Feature
Specifications Of the Sqaure Post
| Post view | Size | Thickness | Panel height | Base post | Normal post | Surface treatment |
| Square post |
40*40mm 50*50mm 60*60mm |
1.0mm 1.1mm 1.2mm 1.5mm 1.8mm 2mm 2.5mm |
830mm | 850mm | 1200mm |
1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
| 1030mm | 1050mm | 1400mm | ||||
| 1230mm | 1250mm | 1600mm | ||||
| 1530mm | 1550mm | 2000mm | ||||
| Rectangle post |
30*50mm 40*60mm 60*80mm |
1830mm | / | 2400mm | ||
| 2030mm | / | 2500mm | ||||
| 2230mm | / | 2800mm | ||||
| 2430mm | / | 3000mm |
3D Fence process
1.Purchase the raw material wire--Zn/Ai coating test--Straightening and cutting--welding panel--Bending--Powder coating or PE coating--loading
2.Post cutting--punching hole on the post -- Powder coating--Loading
Service
1: Product Service
Our products offer 10 YEARS GUARANTEE.
2: Product customization services
We can customize products according to your requirements, including design and drawing.
3: After-sales service
Our after-sales service start immediately after signing the contract.
1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2.The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.Do our best to help customer arrange the shipment and customs clearance.
4.Installation, maintenance and repair instructions with full information.
